Guide your jet hose or CCTV cable.

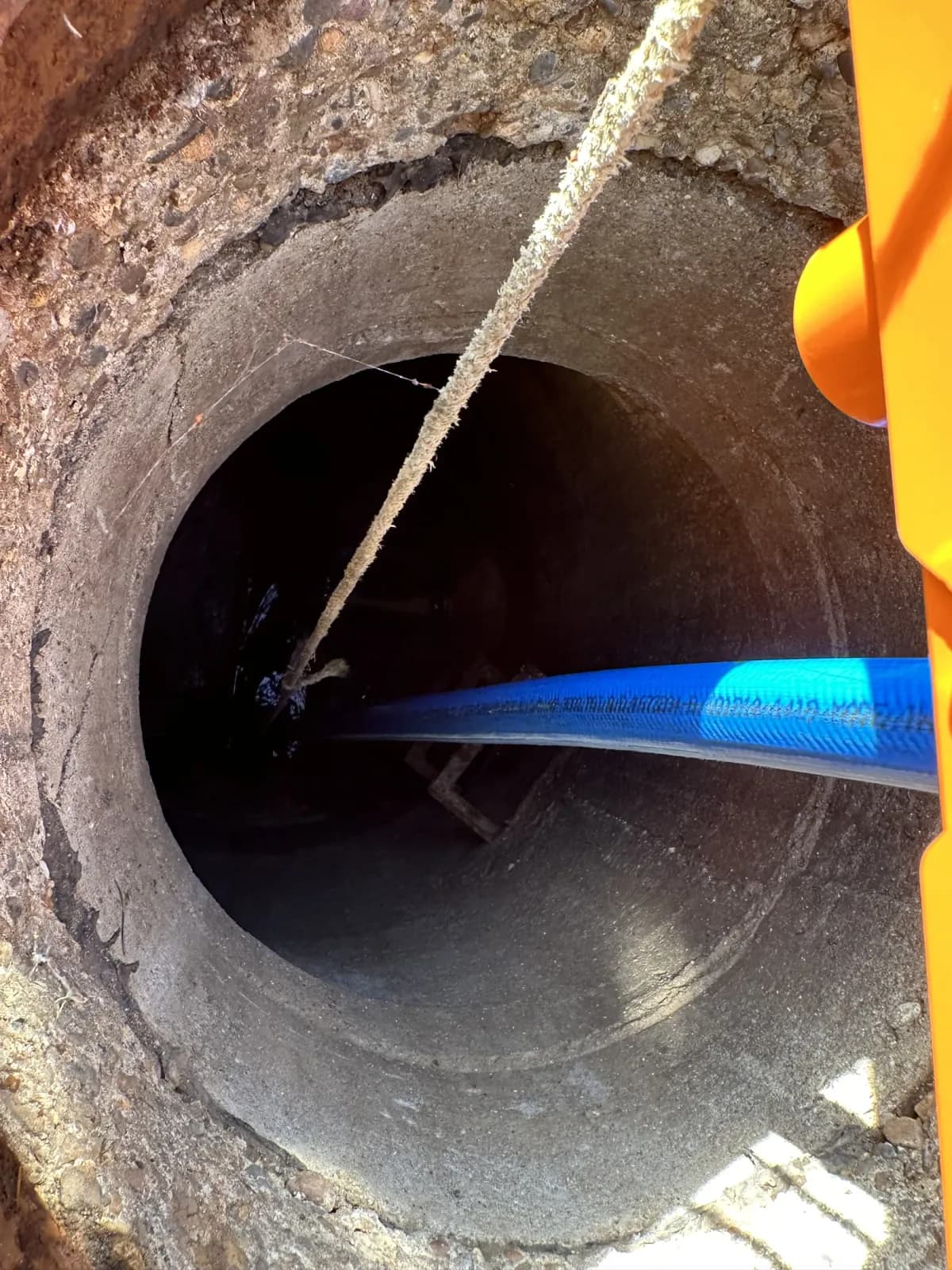

Our down roller supports the equipment line as it feeds across the manhole rim. The hose or cable runs over the roller, while the rails position the assembly on the manhole.
Illuminated manhole down roller
Guide your jet hose or CCTV cable with lighting built in.
Our TorchRail combines a manhole down roller, LED lighting and a tiger-tail rope cleat for sewer-cleaning and CCTV crews. The roller guides your equipment line into the manhole while the LEDs illuminate below the rails.
We confirm current pricing and availability with your request.

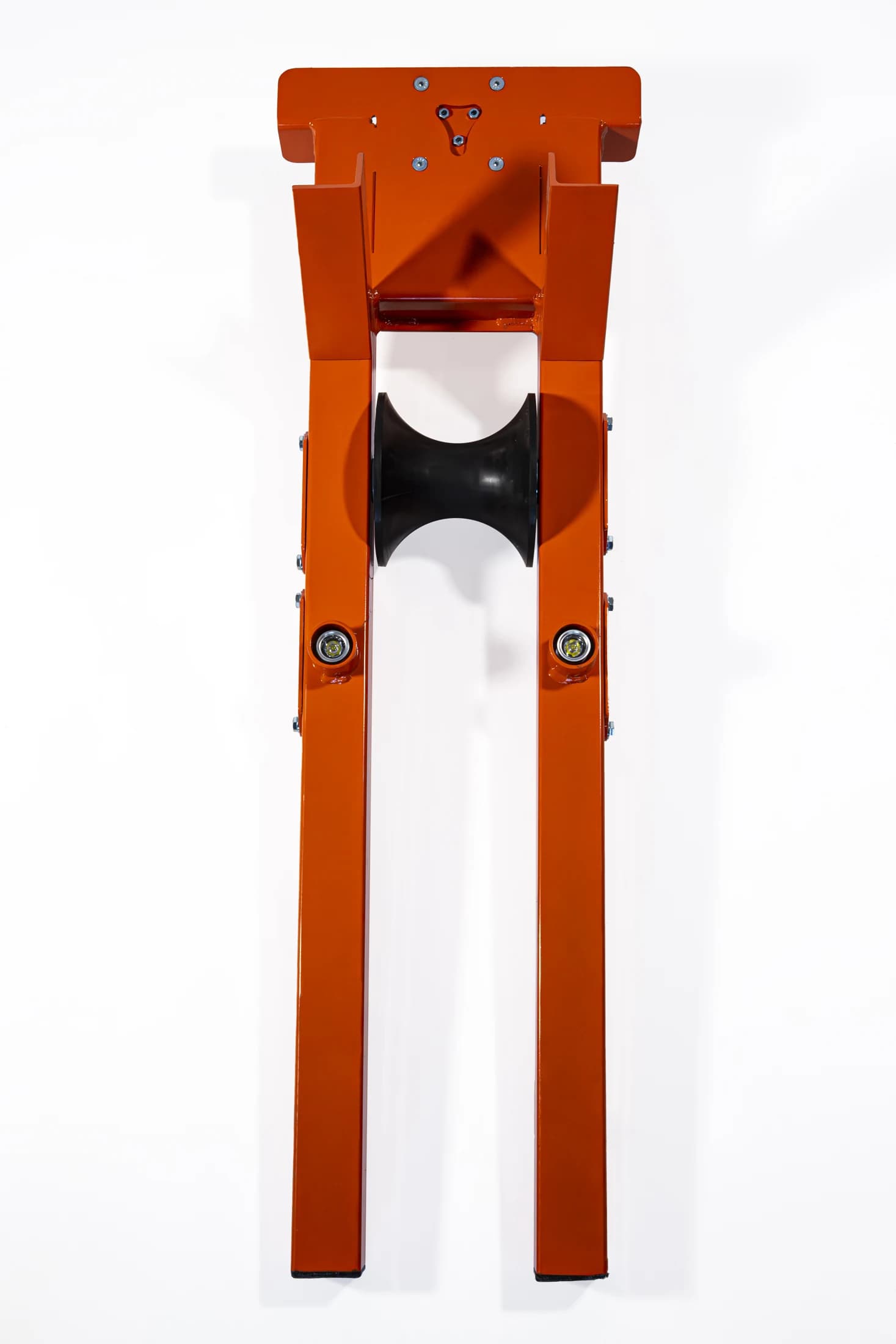

Light the manhole beneath the roller.
LED modules beneath the rails direct light into the manhole. Lighting and line guidance are built into the same assembly for your sewer-cleaning or inspection setup.

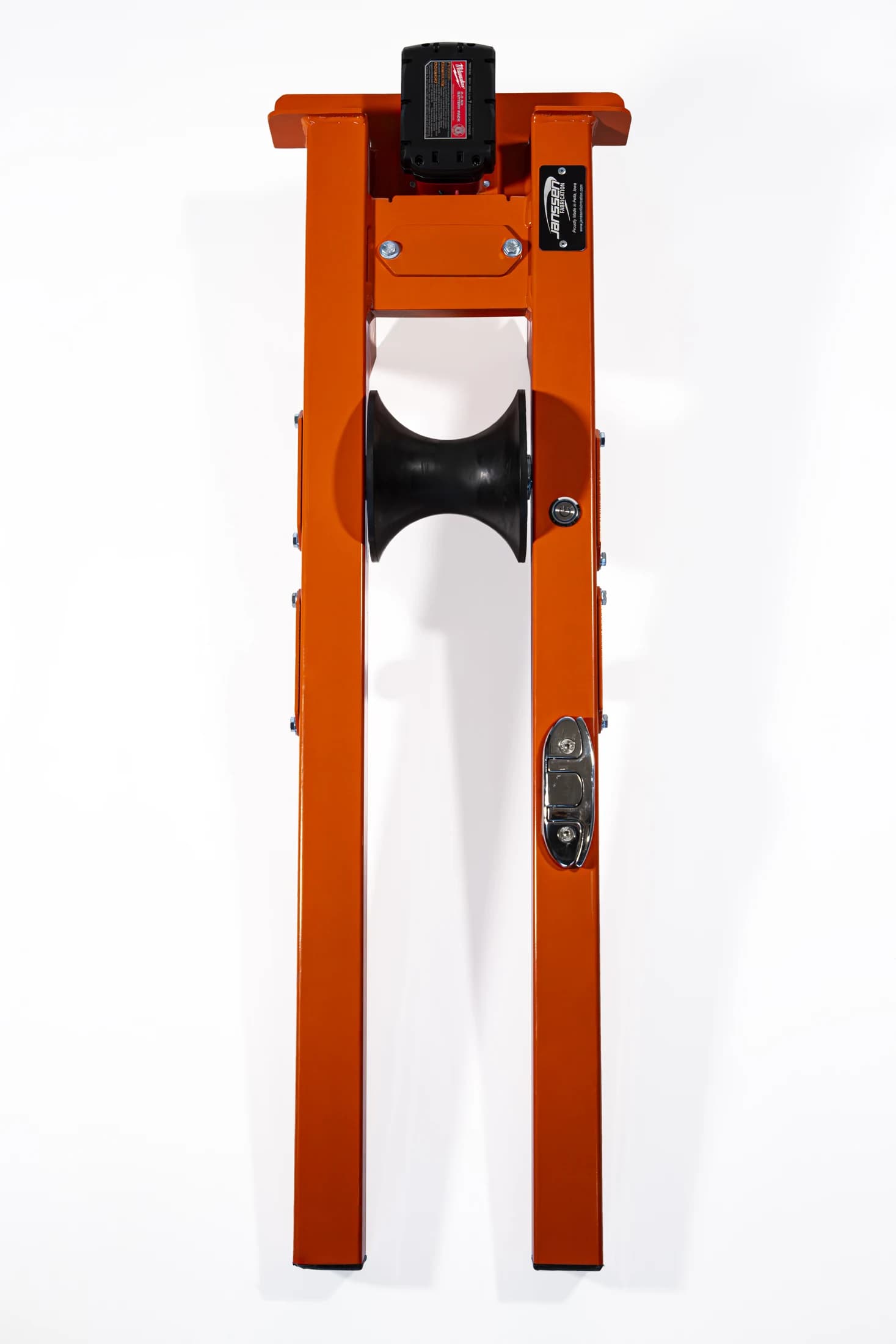

Tie off your tiger-tail rope.
Our integrated cleat gives your tiger-tail equipment rope a tie-off point on the TorchRail. Use the equipment-line arrangement permitted by the supplied instructions.

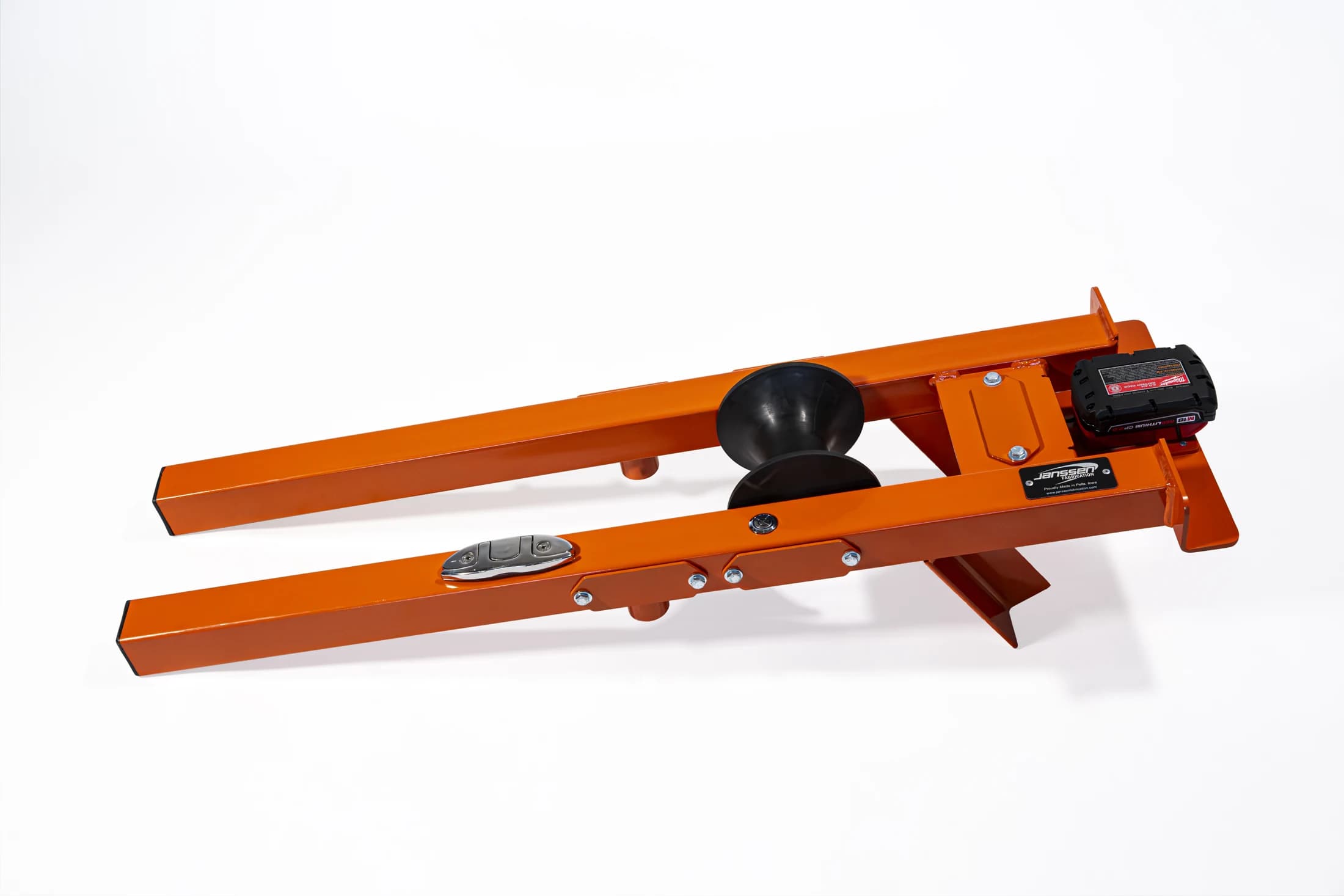

Product specifications.
| Detail | TorchRail |
|---|---|
| Product type | Illuminated manhole down roller |
| Equipment lines | CCTV cable and jet hose |
| Line attachment | Tiger-tail cleat for equipment-line use |
| Light arrangement | Two LED modules in the photographed configuration |
| Light output | 3,000 lumens |
| Manhole fit | Confirm the seating and dimensions for your structure |
| Power | Milwaukee M18; batteries sold separately |
| List price | $1,899 |
Our TorchRail guides jet hose or CCTV cable into the manhole and combines the down roller with LED lighting and a tiger-tail rope cleat.
Sold separately
Battery and charger kit.
Our battery and charger kit includes two Milwaukee M18 REDLITHIUM XC 5.0 Ah batteries and a charger. It lists at $249 and is sold separately for the Light Ring, Light Ring XL, Torch and TorchRail.
Milwaukee M18 batteries and chargers are sold separately. Light Ring Inc. is not affiliated with or endorsed by Milwaukee Tool.
We confirm current pricing and availability with your request.
Light Ring Inc.
Request your TorchRail quote.
Tell us how many TorchRail units you need. If you are choosing between TorchRail and Light Ring, we can explain the roller, lighting and cover differences.
Compare our other products.
01
22–30 in. openings4 LEDs
22–30 in. openings4 LEDsManhole lighting
Light Ring
Our JFLR-150 standard Light Ring combines four LED modules with a hinged 1/4-inch polycarbonate cover, cam-lock, removable roller and rope cleat. It weighs 25 lb and lists at $3,699, tool only.
Explore Light Ring02
24–38 in. openings6 LEDs
24–38 in. openings6 LEDsManhole lighting
Light Ring XL
Our JFLR-300 Light Ring XL combines six LED modules, a hinged cover, removable roller and rope cleat for 24- to 38-inch manhole openings. It weighs 45 lb and lists at $4,699.
Explore Light Ring XL03
Vacuum-tube lighting
Torch
Our Torch combines LED lighting and maneuvering handles in a clamp for compatible nominal 8-inch vacuum tubes.
Explore Torch
